193 Photos

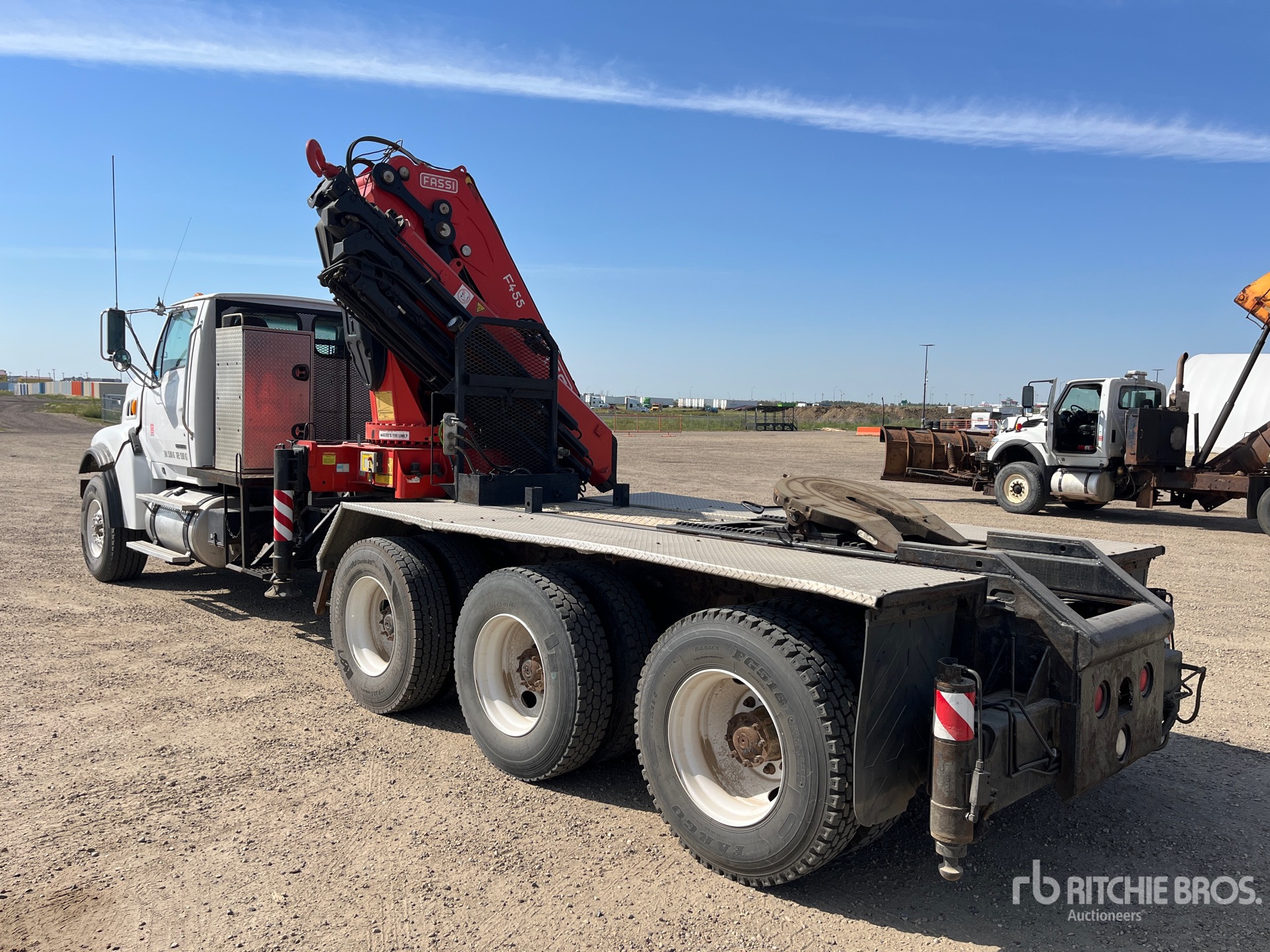

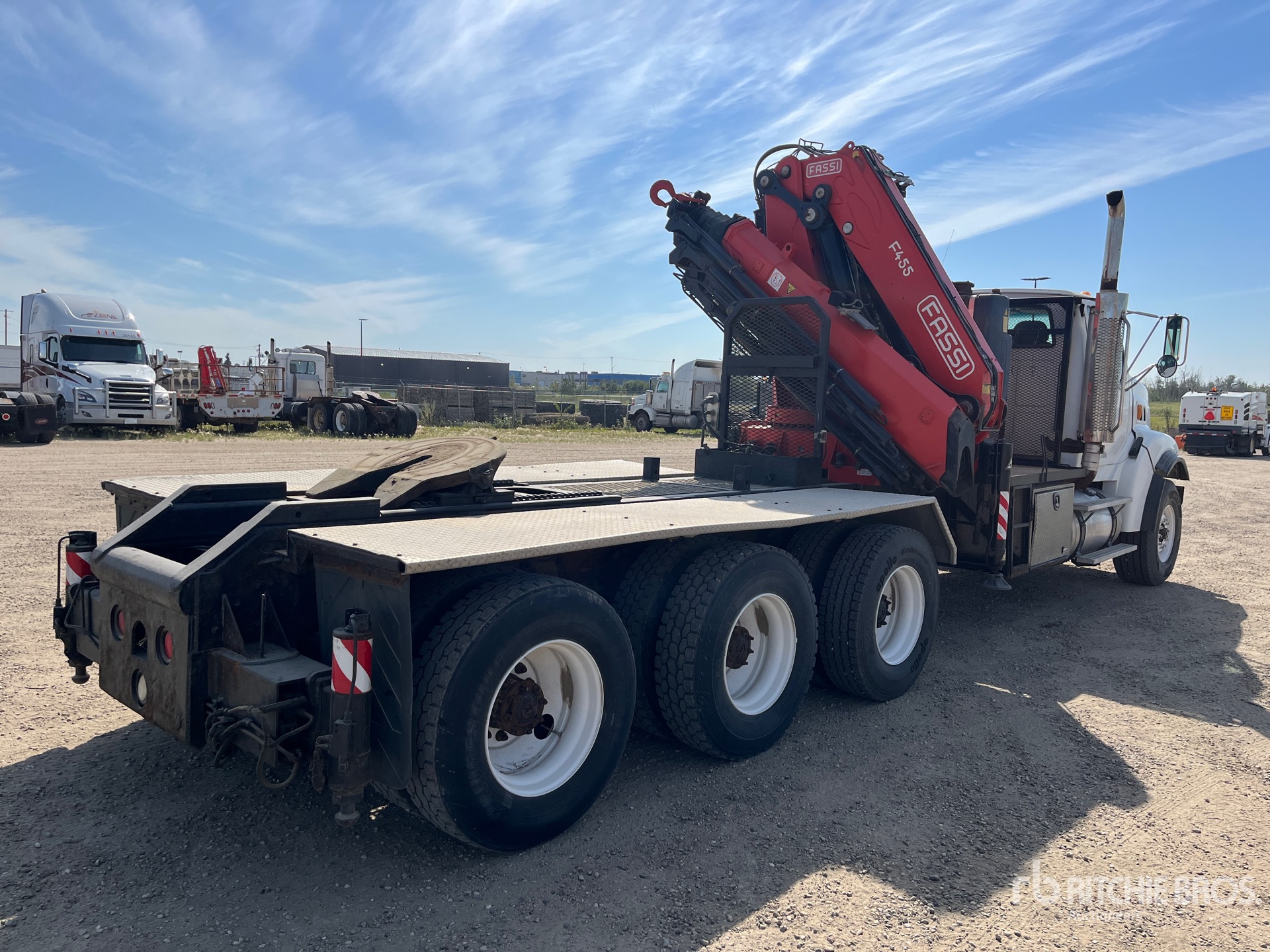

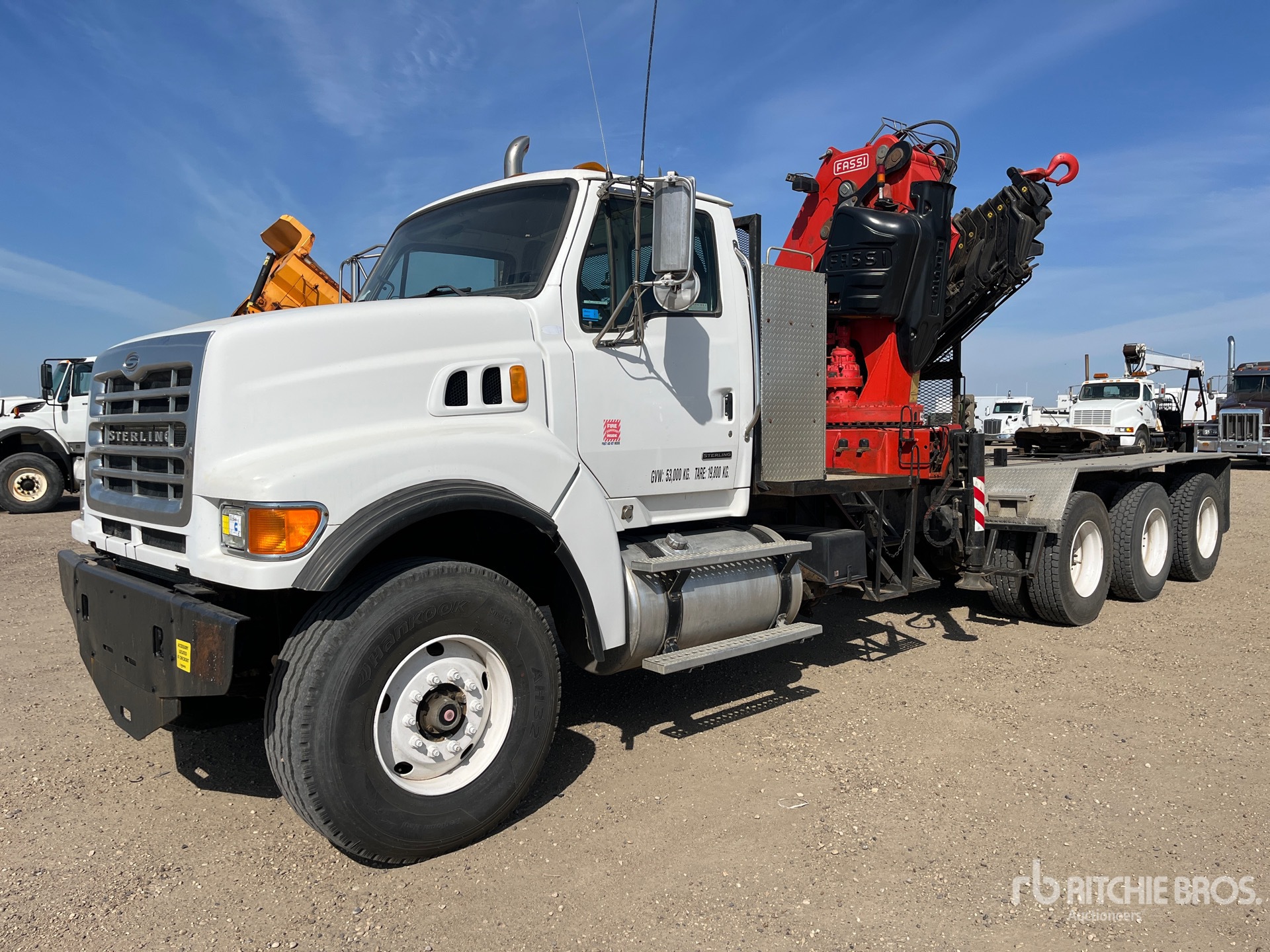

2013 Fassi F455RA.2.28 29762 lb Knuckle Boom on 2007 Sterling LT9500 8x6 Boom Truck
位於
Nisku, AB, CAN
使用狀況
401,623 km (249,557 mi)
序號
2FZPAZCK37AY13329
Loading...
詳細設備資訊
合格的利氏兄弟員工收集了詳細的設備資訊，並對此資產的主要組件執行了功能測試。您或代理人也可以在拍賣日投標前，於現場檢驗任何品項。
ID 號碼
#13361292
在拍賣場中
否
年份
2007
製造商
型號
資產類型
序號或 VIN
2FZPAZCK37AY13329
功能
Detroit Series 60 6 Cylinder 14.0 L Diesel 515 hp Engine, 2006 US EPA Label, Eberspacher Engine Coolant Heater, 8952 Engine hrs, Air Conditioner, Cruise Control, Engine Brake, Eaton Fuller 13-Speed Manual Transmission, Triple Differential Locks, 20000 lb Front Axle, 58545 lb Rears, 78545 lb GVWR, Air Ride Cab, 425/65R22.5 Front Tires, 11R22.5 Rear Tires, Double Frame, Airliner Air Ride Suspension, 280 in Wheelbase, PTO, Center Mounted, 9 ft 2 in - 81 ft 1 in 13 Section Boom, Out and Down Outriggers, Rear Outriggers, Cordless Remote Control, Air Sliding 5th Wheel
備註
ADDITIONAL INFORMATION AVAILABLE = CERTIFICATE = INSPECTION REPORT(S)
General Appearance
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN
2FZPAZCK37AY13329
Hour Meter / Odometer
401623 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
Yes
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Rock chip in windshield
Exterior Lights
Operational
Engine
Emissions Information
2006 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
Visible
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
Rear of engine, Oil Pan, Oil leaking around oil pan and between engine and transmission. (See photos)
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Cab
Engine Hours
8952 Engine hrs
Mirrors
Window Controls
Both Manual
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Air horn operational, Electric horn operational
Oil Pressure
The gauge registers in the operating range. 35 PSI
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Operational
Clutch
Engages
PTO Control
Air engaged, Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Operational
PTO Pump
Operational
Frame Condition
Front Drive Axle
Center Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain was operational without a load.
Cab Suspension Air Bags
Suspension Springs/Hangers
Suspension Bushings
Suspension Air Bags
Left Steer Tire
Left Front Drive Tires
Left Center Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Center Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Wet Kit Plumbing
Hydraulic Tank
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Boom
Support Frame
Hinge Points
Valves
Hoses (Hydraulic)
Swing Motor
Boom Lift Cylinder(s)
Boom Extension Cylinder
Stabilizer Cylinders
Boom Wear Guides
Boom Condition
Turntable Bearing
Stabilizer Beams
Control Console
Safety Lock Out/Stop
Operational
Remote Control
Operational
Limited Function Check
The hydraulic system was operational.
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | May 12, 2025 | May 12, 2025 |
| Silicon | 5.38 PPM | 4 PPM |
| Tin | 0 PPM | 0 PPM |
| Silver | 0 PPM | 0 PPM |
| Aluminum | 0.4 PPM | 0 PPM |
| Chromium | 0 PPM | 2.4 PPM |
| Lead | 0 PPM | 0 PPM |
| Copper | 0 PPM | 0.85 PPM |
| Nickel | 0 PPM | 0 PPM |
| Iron | 8.98 PPM | 14.5 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | N/A |
