114 張相片

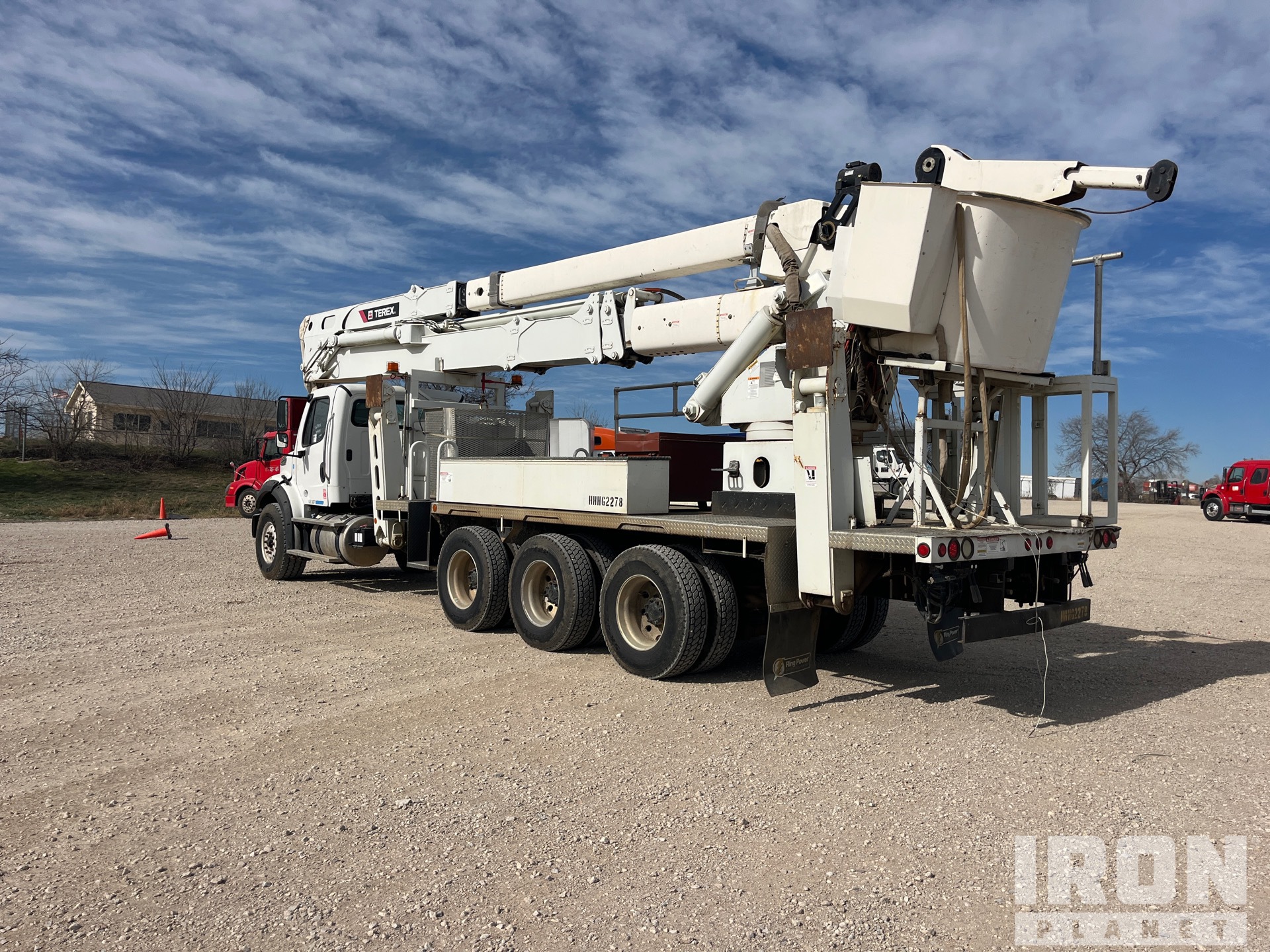

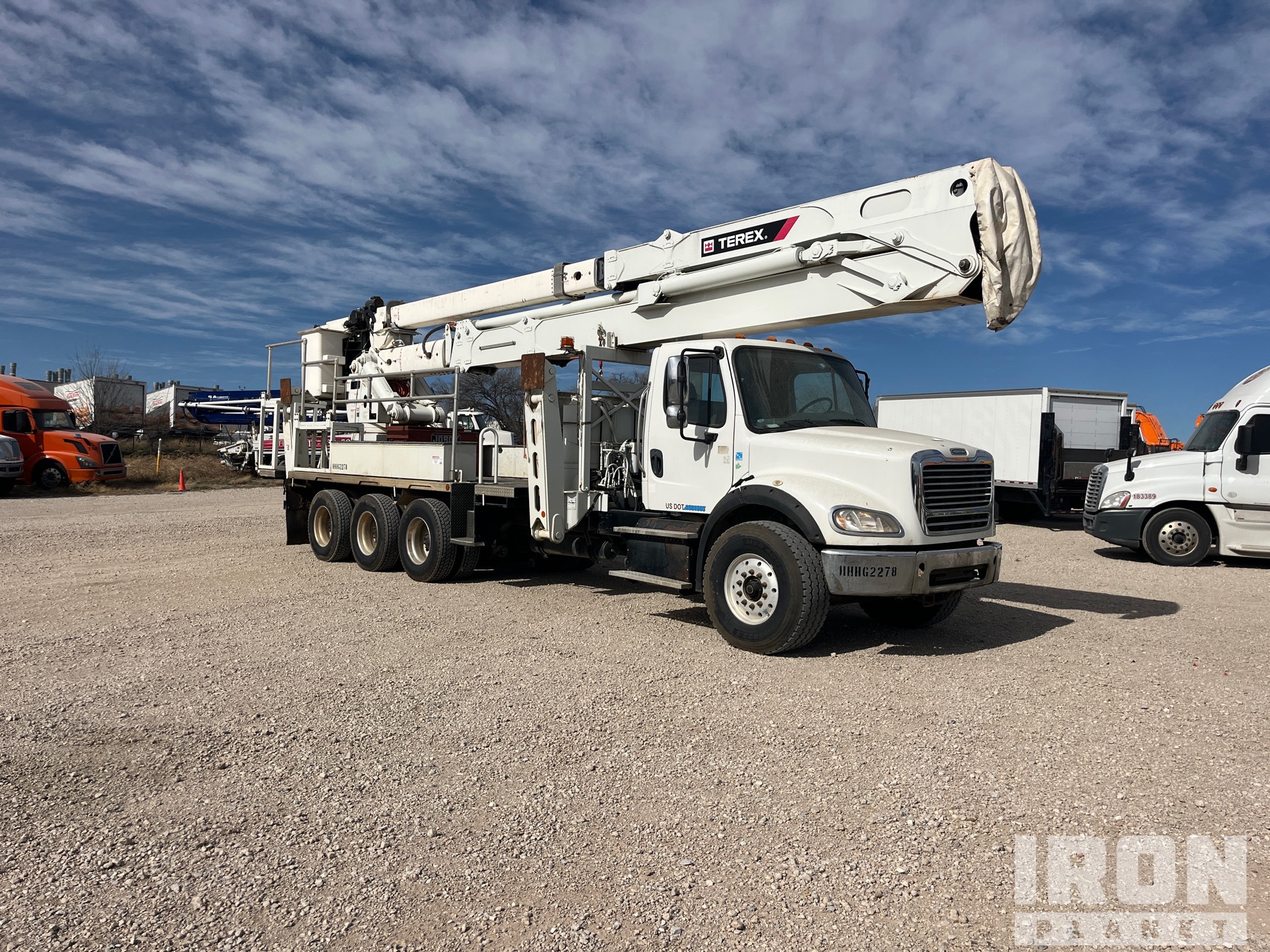

2016 Terex Hi-Ranger TM 125 125 ft on 2017 Freightliner M2 112 8x6 Bucket Truck
位於
Lake worth, TX
Lake worth, TX
使用狀況
20,506 mi (33,002 km)
20,506 mi (33,002 km)
序號
1FVPC5DV5HHHG2278
1FVPC5DV5HHHG2278
Loading...
詳細設備資訊
合格的利氏兄弟員工收集了詳細的設備資訊，並對此資產的主要組件執行了功能測試。您或代理人也可以在拍賣日投標前，於現場檢驗任何品項。
ID 號碼
#14819379
在拍賣場中
是
年份
2017
製造商
型號
資產類型
序號或 VIN
1FVPC5DV5HHHG2278
功能
Detroit DD13 6 Cylinder 12.8 L Diesel 435 hp Engine, 2016 US EPA Label, Requires Diesel Exhaust Fluid, 3648.0 Engine hrs, Engine Brake, Allison 4500 Automatic Transmission, 20000 lb Front Axle, 67998 lb Rears, Meritor RZ-69-166 Drive Axles, 4.89:1 Axle Ratio, 87998 lb GVWR, Air Ride Cab, Aluminum Wheels, 425/65R22.5 Front Tires, 11R22.5 Rear Tires, Dual Steering Boxes, Double Frame, Hendrickson Air Ride Suspension, 264 in Wheelbase, PTO, Rear Mounted, Insulated Two-Person Articulating-Telescopic Boom, Flatbed, Material Handling Jib, X-Type Outriggers, 24 ft x 100 in Bed
General Appearance
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner

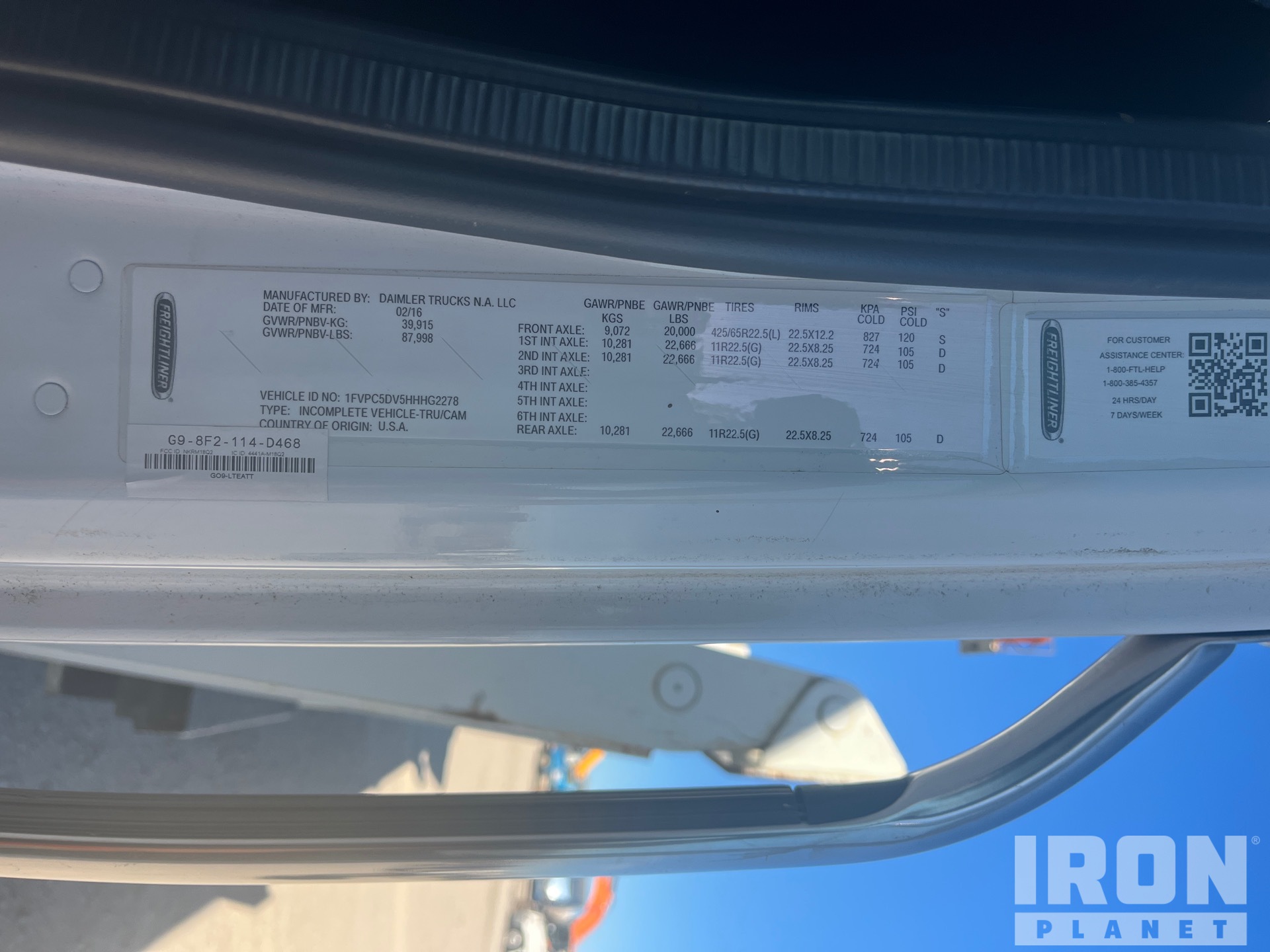

Serial Number / VIN
1FVPC5DV5HHHG2278
Second Serial Number/VIN Photo
Hour Meter / Odometer
20506 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational, Some not operational, Marker lights are not operational
Brakes / Tires
Steer Axle
- 20/32"
- 不適用
- 不適用
- 20/32"
Rear Axle
- 26/32"
- 26/32"
- 不適用
- 不適用
- 26/32"
- 26/32"
Rear Axle
- 26/32"
- 26/32"
- 不適用
- 不適用
- 26/32"
- 26/32"
Rear Axle
- 26/32"
- 26/32"
- 不適用
- 不適用
- 26/32"
- 26/32"
Rear Axle
- 26/32"
- 26/32"
- 不適用
- 不適用
- 26/32"
- 26/32"
Engine
Emissions Information
2016 US EPA Label, Requires Diesel Exhaust Fluid
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Slow to build air
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
Oil Pan
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
After jump starting, the engine ran.
Cab
Engine Hours
3648.0 Engine hrs
Mirrors
Window Controls
Both Manual
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Air horn operational, Electric horn operational
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Does not respond to controls
PTO Control
Air engaged, Not operational
ECM Miles
Unable to get ECM reading
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Transmission
Operational
Drive Shaft
Power Take Off
Inoperable Air operated
Steer Axle
Front Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Boom Lift Cylinder
Secondary Boom Cylinder
Stabilizer Cylinders
Cylinders
Auxiliary Hydraulic Plumbing
Not operationally checked, Rear
Limited Function Check
The hydraulic system could not be operationally checked.
Configuration
Bed Body
Support Frame
Hinge Points
Limited Function Check
Unable to operationally check
Tool / Work Box
Steering Linkage
Brake Type
Air brakes
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Suspension Bushings
Cab Suspension Air Bags
Frame Condition
Wheel Condition
Wheel Studs
Dielectric Certification
There was no Dielectric Certification label located on the machine
Turntable Bearing
Boom Condition
Boom Wear Guides
Jib Condition
Work Bucket
Hydraulic Controls
Unable to operationally check
Oil Sample Analysis
Oil Sample Analysis
| engine | transmission | |
|---|---|---|
| date of analysis | Jan 15, 2026 | Jan 15, 2026 |
| Silicon | 7.07 PPM | 7.72 PPM |
| Tin | 3.15 PPM | 0.63 PPM |
| Silver | 0.13 PPM | 0 PPM |
| Aluminum | 35.55 PPM | 21.04 PPM |
| Chromium | 7.83 PPM | 0.11 PPM |
| Lead | 0 PPM | 17.13 PPM |
| Copper | 94.18 PPM | 128.77 PPM |
| Nickel | 1.84 PPM | 0.73 PPM |
| Iron | 113.17 PPM | 54.86 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
