98 張相片
2012 Vermeer D20X22II 定向钻孔机 w/1998 Belshe T-18 Trailer
位於
Goodfield, IL
Goodfield, IL
使用狀況
2,284 小時
2,284 小時
序號
1VR6180T8C1000701 / 16JF01724W1031090
1VR6180T8C1000701 / 16JF01724W1031090
詳細設備資訊
此批次貨品擁有 IronClad Assurance 的保證
此批次貨品經過合格檢驗人員全方位詳細檢驗，讓您安心選購。
ID 號碼
#15501775
在拍賣場中
否
功能
Open Operator Station, 2011 US EPA Label, Kubota V3800-D1-ET09 4 Cylinder 61.6 kW 3.8 L Diesel Engine, Drill Rod Loading System, 41 Drill Rods, 12 in Rubber Tracks, T/A Trailer, Lunette Ring, Electric Brakes, 17 ft x 82 In. Main Deck
備註
**Title may not be available for up to 25 business days after auction.**

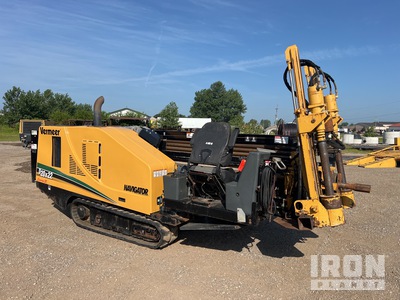

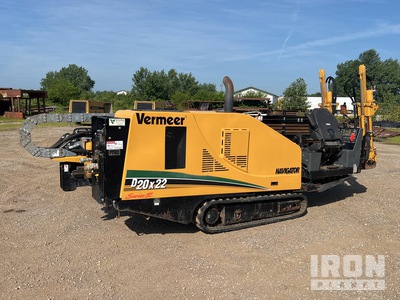

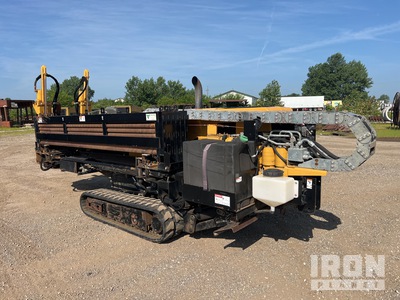

General Appearance
(17)
Serial Number / VIN
1VR6180T8C1000701 / 16JF01724W1031090
Hour Meter / Odometer
2284 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Safety
(1)
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
(10)
Seats/Armrests
Steering Controls
Hydraulic Controls
Auxiliary Hydraulic Control
Drivetrain Controls
Dash Console
Engine Oil Pressure
Warning light inoperable
Warning Lights
Operational
Gauges
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
(7)
Emissions Status
2011 US EPA Label
Emission Label
Blow-by (subjective visual observation)
Video capture could not be performed
Starter
Operational
Exhaust System
Radiator
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
(2)
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
(17)
Pumps (Hydraulics)
Seepage
Valves
Hydraulic Tank
Hoses (Hydraulics)
Hydraulic Motors
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
(9)
Main Frame
Stake Down System
Operational
Kelly Drive Gear Box
Kelly Slide Wear Plates
Hyd. Hose Carrier System
Vices
Water / Mud Pump
Not Operationally Checked
Drill Rod Loading System
Operational
Drill Rod Racks
1 rod racks
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
(16)
Left Roller Frame
Left Track Tensioner
Left Grouser Height
17 mm
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Grouser Height
18 mm
Right Track Rollers
Right Idler
Right Sprocket
Trailer
(19)
Trailer VIN
16JF01724W1031090
Frame Rails/ Main Beams Condition
Cross Members
Tongue/ Hitch Condition
Lunette ring Bent A-frame
Channel Supports
Axle Condition
Tire Size
All of the tires are the same size, 215/75R17.5 Front tires
Tread Depth (Trailer)
LF 10 /32", LR 10 /32", RR 13 /32", RF 13 /32"
Wheel Condition
Wheel Studs
Springs/Hangers Condition
Trailer Lights
Not operationally checked
Trailer Light Wiring
Not operationally checked
Trailer Brakes
Electric brakes, Not operationally checked
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Jul 08, 2026 |
| Silicon | 0.4 PPM |
| Tin | 0.22 PPM |
| Silver | 0 PPM |
| Aluminum | 0.27 PPM |
| Chromium | 0 PPM |
| Lead | 2.21 PPM |
| Copper | 0.16 PPM |
| Nickel | 0.67 PPM |
| Iron | 0 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
