76 張相片
2012 Mormak 1216 Portable Cone Crushing Plant
位於
Oakridge, OR
Oakridge, OR
序號
E-3048-0912
E-3048-0912
Loading...
詳細設備資訊
此批次貨品擁有 IronClad Assurance 的保證
此批次貨品經過合格檢驗人員全方位詳細檢驗，讓您安心選購。
ID 號碼
#15465775
在拍賣場中
否
功能
4 ft x 5 ft KPI-JCI Astec 1200LS Cone Crusher, KPI-JCI Astec 6163-32LP 16 ft x 6 ft Triple Deck Screen, 36 in Wide Feed Conveyor, 30 in Wide Under Crusher Conveyor, 42 in Wide Under Screen Conveyor, 32 in x 30 in Cross Belt Magnet, Tri/A Carrier, Spring Suspension

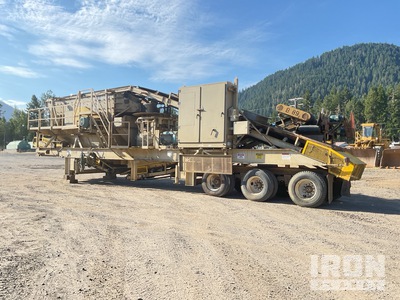

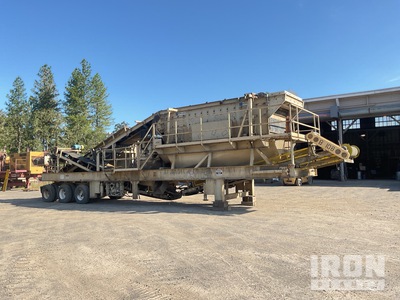

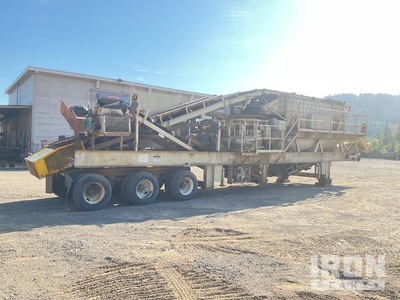

General Appearance
Serial Number / VIN
E-3048-0912
Control Station
Crusher/Screen Controls
Limited Function Check
The item was not operational. The main components could not be operationally checked.
Electrical
Electric Motors
Manufacture brand WEG, Horsepower: 200
Cables and Connections
Hydraulics
Pumps (Hydraulics)
Not operationally checked
Hoses
Stabilizer Jack Cylinders
Not operationally checked
Limited Function Check
The hydraulic system could not be operationally checked.
Chassis
Feed Hopper
Crusher Base Frame
Crusher Chamber Frame
Crusher Drive System
Not functionally checked
Feed Conveyor Condition
Feed Conveyor Frame
Feed Conveyor Drive Motor
Not operationally checked
Feed Conveyor Rollers
Feed Conveyor Head and Tail Pulley
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Horsepower: 15, Not operationally checked
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Screen Deck
Flat screen, Number of decks: 3, Side tension bottom deck
Deck Frames / Wear Bars
Screen Cloth
Serviceable
Chute Condition
Carrier
Axle Condition
Trailer Brakes
Air, Operational
Brake Lines/Hoses
Limited Function Check
The unit could not be started and run; several components could not be checked.
Tire Size
All of the tires are the same size, 11r22.5 Front tires
Tire Condition
Tread Depth
LF LFO 21/32” LFI 13/32” /32", LMI 15 /32", LMO 16 /32", LRI 12 /32", LRO 22 /32", RRI 13 /32", RRO 12 /32", RMI 16 /32", RMO 16 /32", RF RFO 12/32” RFI 12/32” /32"
Wheel Condition
Wheel Studs
Springs/Hangers Condition
Tongue/ Hitch Condition
No visible damage
Power Receptacle Functional
Yes
Lights/Wiring Condition
Functional
Brake Lights Functional
Yes
Turn Signals Functional
Yes
Frame Rails/ Main Beams Condition
No visible damage
Landing Gear / Tongue Jack
Stabilizer Jacks
Number of jacks 4, Hydraulic
其他資訊
出貨與取貨
- 在全額支付發票上的款項前，買家無法從拍賣網站移除購買品項。
- 駕駛者必須有利氏兄弟拍賣行交貨提單，方可取貨。
- 我們與值得信賴的貨運廠商合作，讓您能以最低價格輕鬆找到最適合的運輸商。透過我們的廠商網站要求免費報價，或取得即時的貨運評估。
一般
詳細的設備資訊範圍有限，利氏兄弟拍賣行並未檢驗除此處明確規定以外的任何設備部分或組件。除非明確說明，否則我們對設備或其組件不做任何明示或暗示的陳述或保證，包括但不限於有關功能性、符合性或遵守任何適用當局或監管機構的任何安全標準或要求、適合任何特定用途或適銷性的陳述或保證。強烈建議您在投標前自行詳細檢驗設備。
功能
設備並未在負載下進行測試，也未在所有可用檔位中操作。我們不聲明或保證設備依製造商的規格運作。除此處明確包含的功能之外，未對任何功能進行任何檢驗。僅提供個別底盤系統組件的精選相片，可能無法顯示整個底盤系統的狀況。
尺寸
測量值僅供估計。實際負載尺寸可能會因卡車 / 拖車高度及負載機器配置 / 位置而異。買家有責任在離開我們的拍賣現場前測量所有負載，以確保負載運輸安全。所有測量值都應由買家驗證。請勿依賴這些測量值進行運輸。
