69 張相片
2008 International 7300 4x4 高空作业车
位於
Wausau, WI
Wausau, WI
使用狀況
224,159 mi
224,159 mi
序號
1HTWBAANX8J689882
1HTWBAANX8J689882
Loading...
詳細設備資訊
此批次貨品擁有 IronClad Assurance 的保證
此批次貨品經過合格檢驗人員全方位詳細檢驗，讓您安心選購。
ID 號碼
#15769676
在拍賣場中
否
功能
International MaxxForce DT 6 Cylinder Diesel Engine, Air Conditioner, Cruise Control, Engine Brake, Allison Automatic Transmission, Differential Lock, 13000 lb Front Axle, 20000 lb Rears, 33000 lb GVWR, Air Ride Cab, Aluminum Outer Wheels, 11R22.5, Spring Suspension, 194 in Wheelbase, PTO, Front Mounted, Articulating-Telescopic Boom, Utility Body, Turret Mounted Winch, A-Outriggers, Rear Outriggers, 16 ft 6 in x 94 in Bed, Pintle Hitch
備註
**Title may not be available for up to 25 business days after auction.**

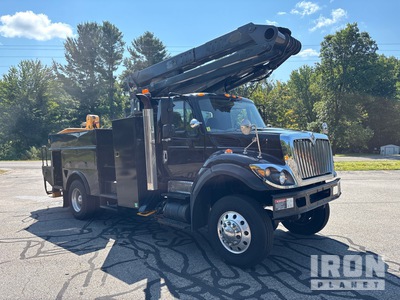

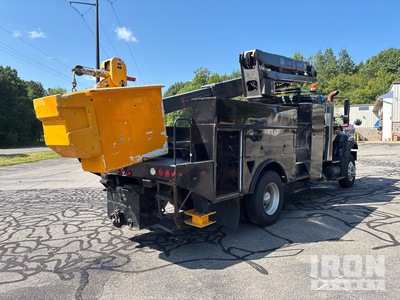

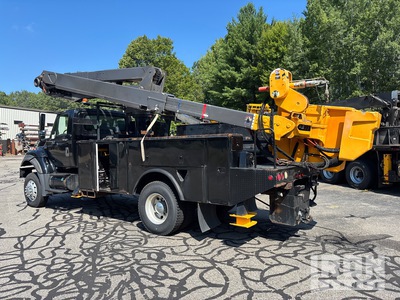

General Appearance
Serial Number / VIN
1HTWBAANX8J689882
Frame Stamp Serial Number/VIN Photo
Hour Meter / Odometer
224159 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
No
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Brakes / Tires
Steer Axle
- 11/32" Aluminum
- Covered
- Covered
- 17/32" Aluminum
Rear Axle
- 21/32" Aluminum
- 22/32" Steel
- Covered
- Covered
- 17/32" Steel
- 18/32" Aluminum
Engine
Emissions Information
US EPA Label not legible
A/C Compressor
Operational
Blow-by (subjective visual observation)
Visible
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
Rear of engine
Fuel Leaks
No dripping leaks
Cooling System Leaks
Radiator
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started but did not run smoothly.
Cab
Mirrors
Window Controls
Both Manual
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Air horn inoperable, Electric horn operational
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Not operationally checked
PTO Control
Air engaged
ECM Miles
Reader will not display ECM mileage
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Transmission
Operational
Drive Shaft
Front driveshaft missing
Power Take Off
Operational
Steer Axle
Missing drive shafts
Rear Drive Axle
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Dry rotted
Boom Lift Cylinder
Secondary Boom Cylinder
Stabilizer Cylinders
Dripping leak on the right cylinder
Auxiliary Hydraulic Plumbing
Not operationally checked
Limited Function Check
The hydraulic system was operational.
Configuration
Bed Body
Rusted
Support Frame
Rusted
Limited Function Check
The main chassis components were operational in a limited check.
Tool / Work Box
Painted to match body, Doors missing
Steering Linkage
Brake Type
Air brakes
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Suspension Bushings
Dry rotted
Cab Suspension Air Bags
External Electrical / Air Connections
Not operationally checked
Frame Condition
Rusted
Wheel Condition
Wheel Studs
Dielectric Certification
Date not legible
Turntable Bearing
Boom Condition
Boom Wear Guides
Work Bucket
Hydraulic Controls
