89 張相片
2022 Astec Ranger SRT20 Tracked 旋风筛
位於
North East, MD
North East, MD
使用狀況
439 小時
439 小時
序號
225177
225177
Loading...
詳細設備資訊
合格的利氏兄弟員工收集了詳細的設備資訊，並對此資產的主要組件執行了功能測試。您或代理人也可以在拍賣日投標前，於現場檢驗任何品項。
ID 號碼
#15829230
在拍賣場中
是
功能
2021 US EPA Label, Deutz td2.9L4 4 Cylinder 55.4 kW 2.9 L Diesel Engine, 7 ft x 12 ft Belt Feeder w/Hydraulic Raise Grizzly 16 ft x 6 ft 6 in Single Deck Trommel Screen, 52 in Wide Feed Conveyor, 31.5 in Wide Fines Discharge Conveyor, 52 in Wide Under Screen Conveyor, 39 in Wide End Discharge Conveyor, Radio and Cable Remote Control, 16 in Triple Grouser Track Shoes

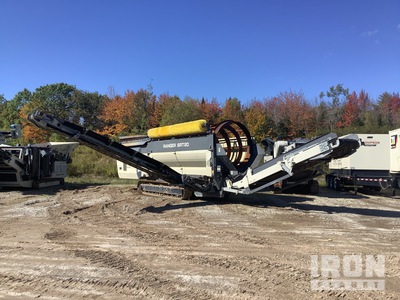

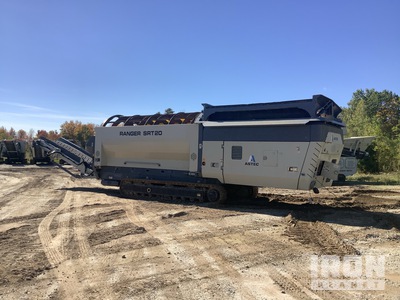

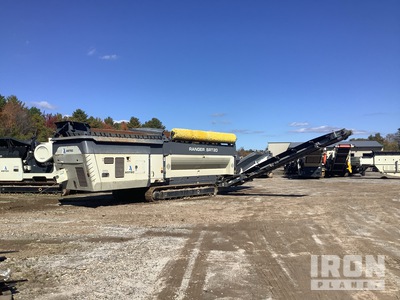

General Appearance
Serial Number / VIN
225177
Hour Meter / Odometer
439 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2021 US EPA Label
Emission Certification Label
US EPA certification label
Block Heater
No
Blow by @ idle (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Not operationally checked
Valves
Not operationally checked
Hydraulic Tank
Hoses
Conveyor Cylinders
Power Travel Drive System
Limited Function Check
The hydraulic system was operational. Test conveyor and drum drive motors were not operationally checked.
Chassis
Feed Hopper
Length @ top: 12 ft, Width @ top: 7 ft, Grizzly length: 8 ft, Width between grizzly bars: 8 in
Feed Conveyor Condition
48 in wide feed belt
Feed Conveyor Frame
Feed Conveyor Drive Motor
Not operationally checked
Feed Conveyor Rollers
Covered
Feed Conveyor Head and Tail Pulley
Covered
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Not operationally checked
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Screen Deck
Screen is missing
Screen Cloth
No screens
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
18 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
18 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Oct 15, 2025 |
| Silicon | 4.12 PPM |
| Tin | 0.67 PPM |
| Silver | 0 PPM |
| Aluminum | 1.21 PPM |
| Chromium | 1.13 PPM |
| Lead | 0.06 PPM |
| Copper | 5.09 PPM |
| Nickel | 3.14 PPM |
| Iron | 33.76 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
其他資訊
出貨與取貨
- 在全額支付發票上的款項前，買家無法從拍賣網站移除購買品項。
- 駕駛者必須有利氏兄弟拍賣行交貨提單，方可取貨。
- 我們與值得信賴的貨運廠商合作，讓您能以最低價格輕鬆找到最適合的運輸商。透過我們的廠商網站要求免費報價，或取得即時的貨運評估。
一般
詳細的設備資訊範圍有限，利氏兄弟拍賣行並未檢驗除此處明確規定以外的任何設備部分或組件。除非明確說明，否則我們對設備或其組件不做任何明示或暗示的陳述或保證，包括但不限於有關功能性、符合性或遵守任何適用當局或監管機構的任何安全標準或要求、適合任何特定用途或適銷性的陳述或保證。強烈建議您在投標前自行詳細檢驗設備。
功能
設備並未在負載下進行測試，也未在所有可用檔位中操作。我們不聲明或保證設備依製造商的規格運作。除此處明確包含的功能之外，未對任何功能進行任何檢驗。僅提供個別底盤系統組件的精選相片，可能無法顯示整個底盤系統的狀況。
尺寸
測量值僅供估計。實際負載尺寸可能會因卡車 / 拖車高度及負載機器配置 / 位置而異。買家有責任在離開我們的拍賣現場前測量所有負載，以確保負載運輸安全。所有測量值都應由買家驗證。請勿依賴這些測量值進行運輸。
