2002 Manitowoc 222B 100 ton Lattice-Boom Crawler Crane
位於
Fort lupton, CO
Fort lupton, CO
使用狀況
6,297 小時
6,297 小時
序號
2221089
2221089
Loading...
詳細設備資訊
檢驗報告即將完成。請稍後返回查看。
ID 號碼
#14795861
在拍賣場中
否
年份
2002
製造商
型號
序號或 VIN
2221089
功能
Air Conditioner, Load Moment Indicator, 200 ft Boom, 60 ft Fixed Jib, Self Erecting, 3rd Drum, Johnson 2294 lb 50 ton Hook Block, 53000 lb Counterweight, Counterweight Removal System, 36 in Single Grouser Track Shoes
備註
Comes with IronClad Assurance - Subject to Colorado Sales Tax -
General Appearance

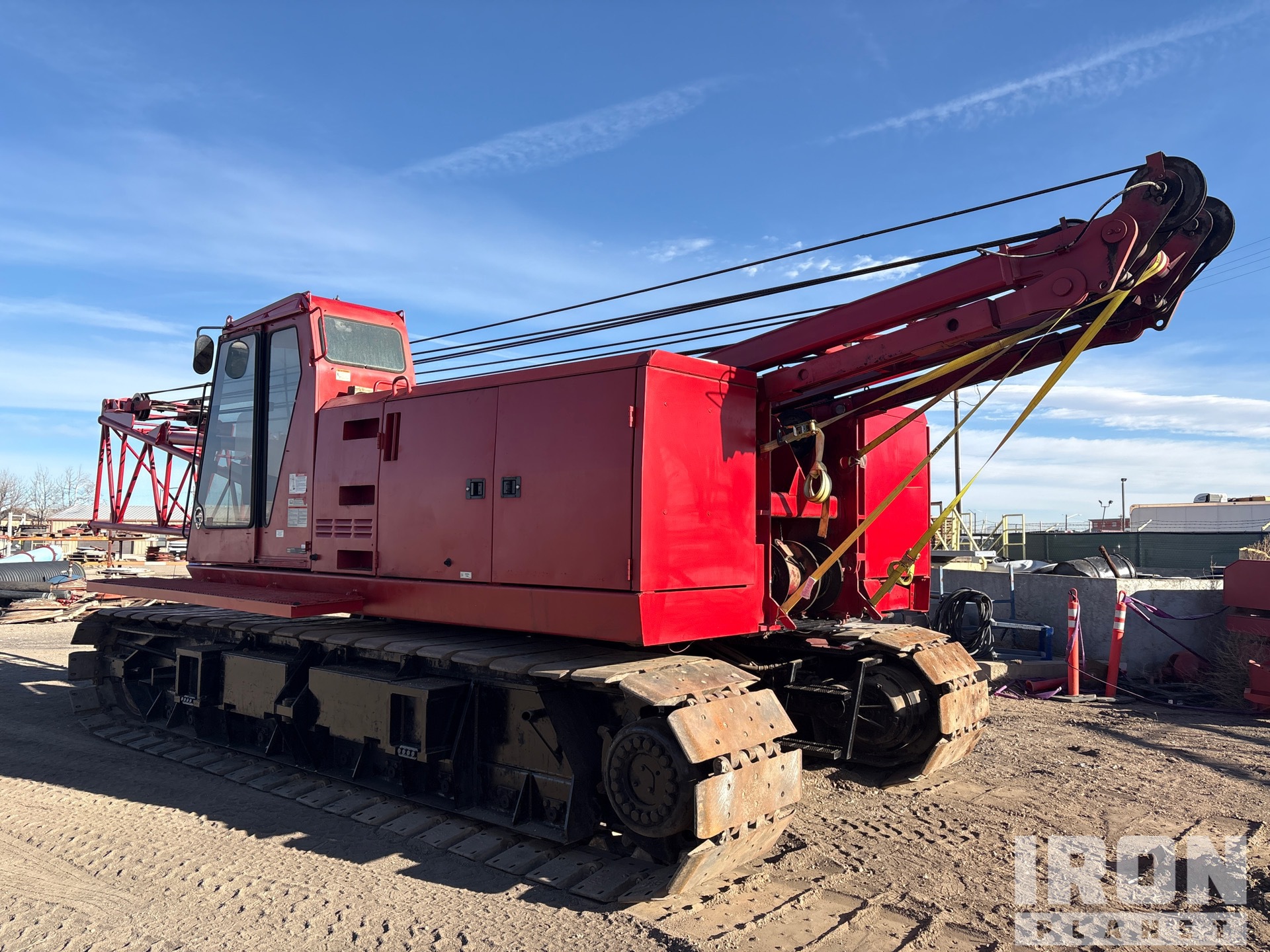

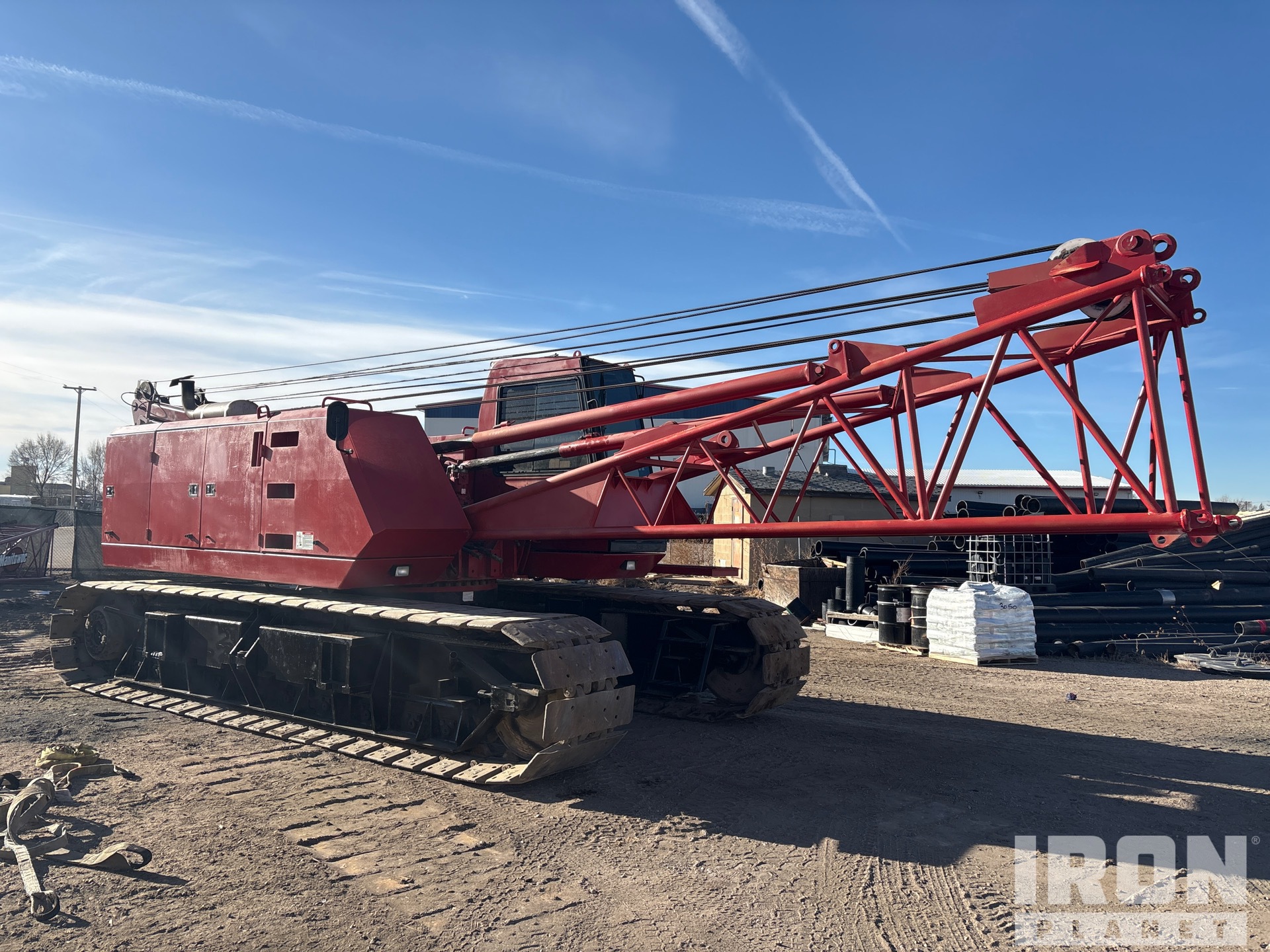

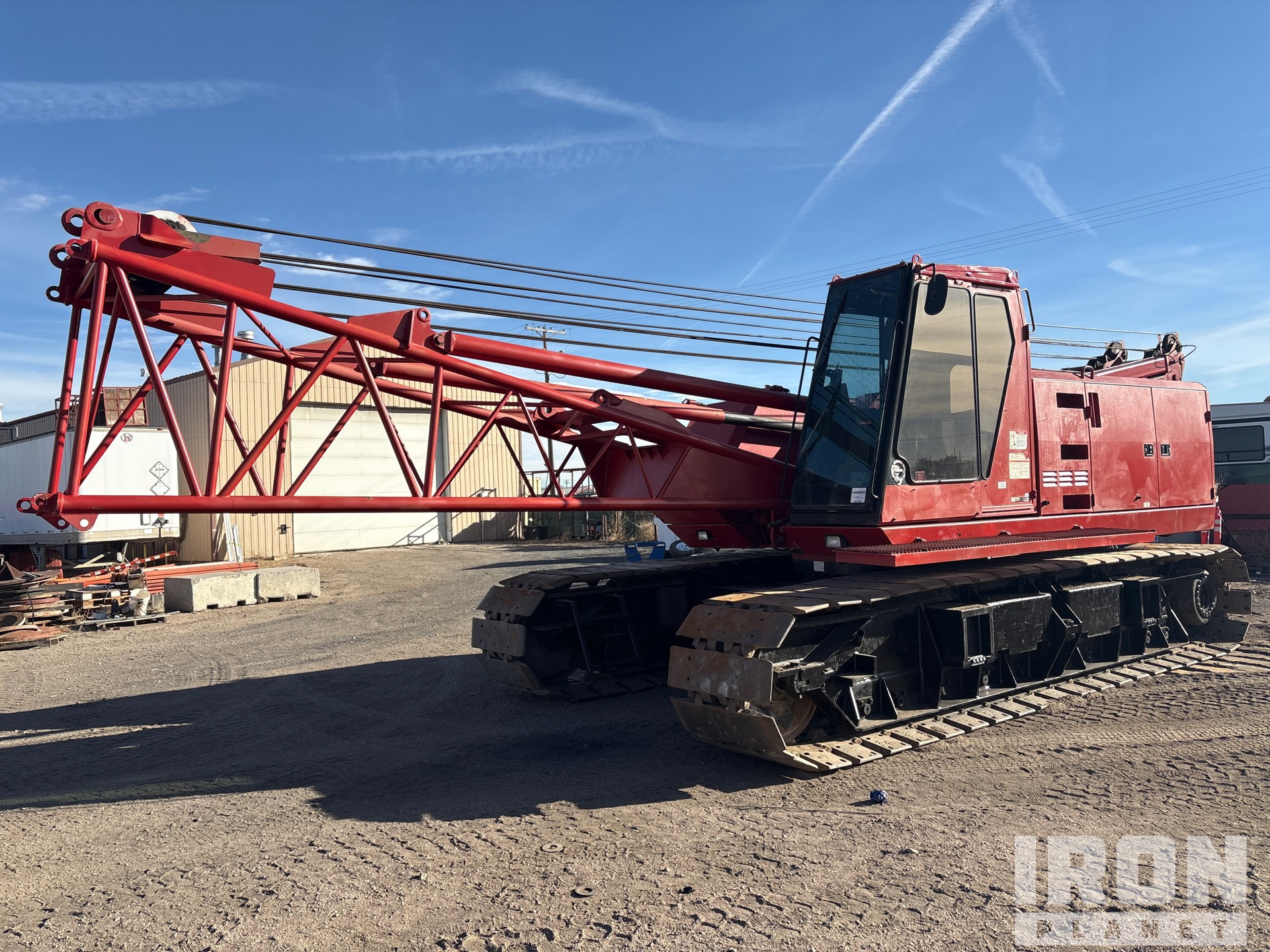

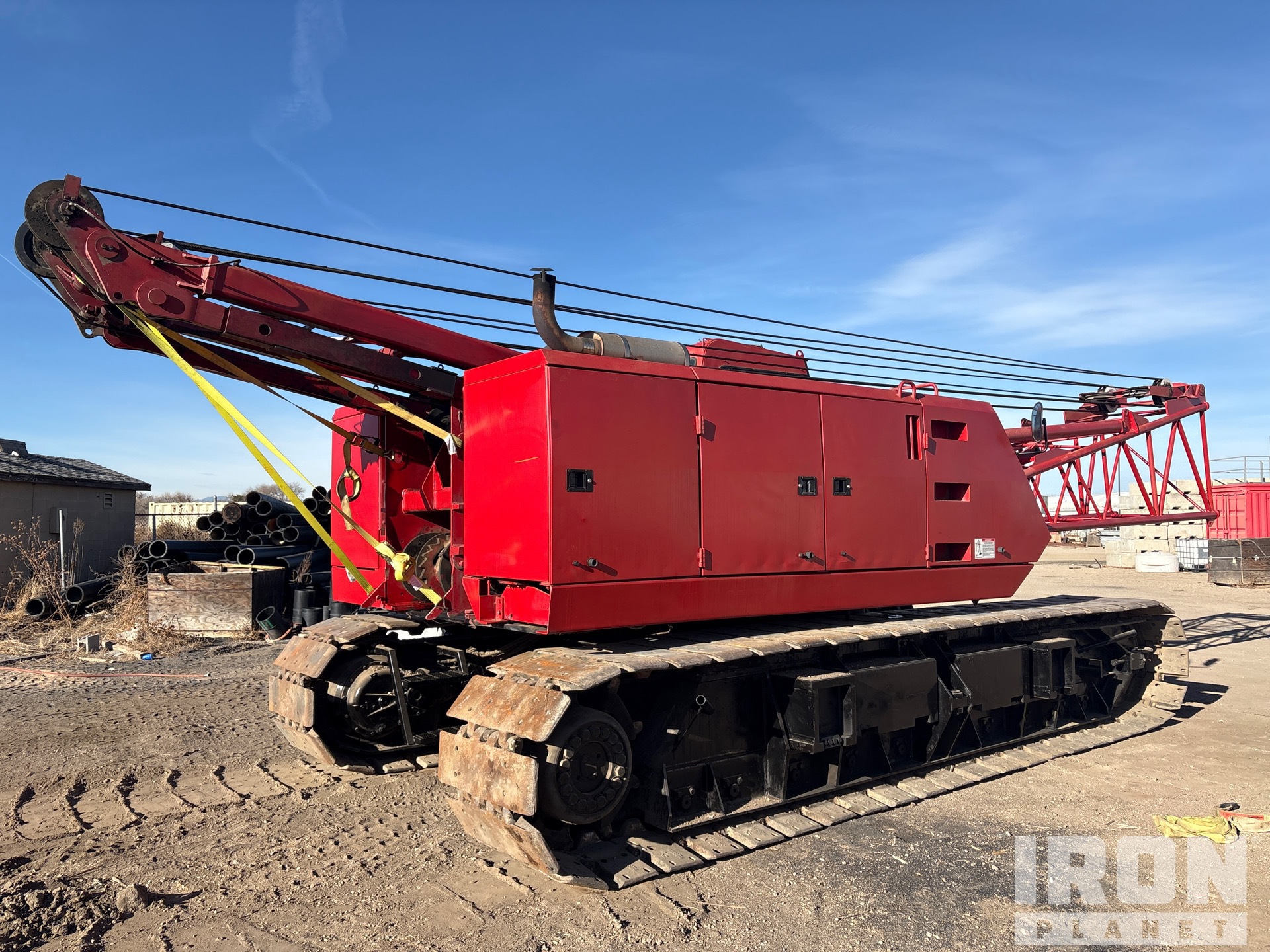

Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner

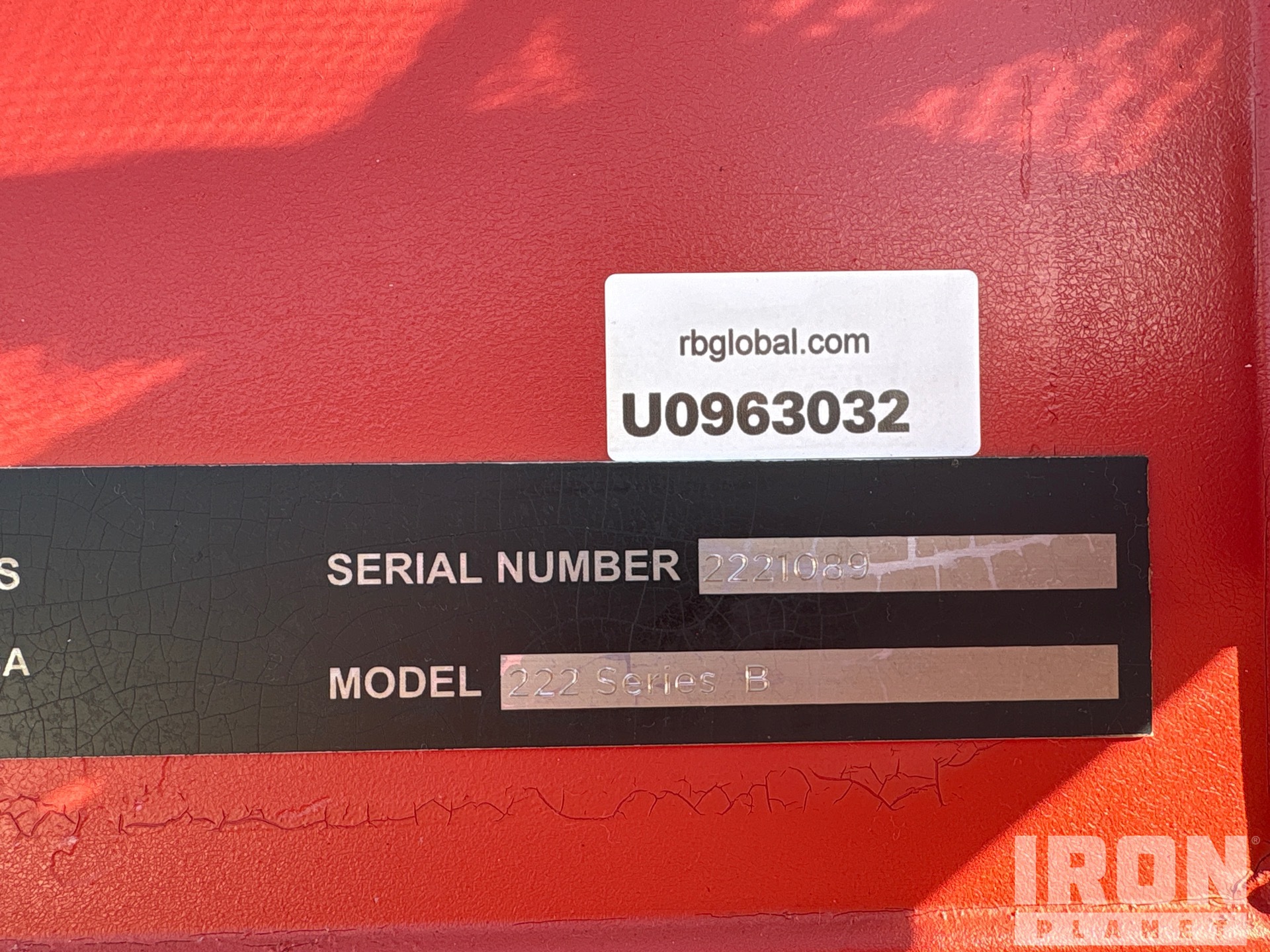

Serial Number / VIN
2221089
Hour Meter / Odometer
6297 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 11/10/2026
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Control Station - Upper
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Not operationally checked with a load.
Controls Hydraulic or Air
Load Charts
Chart book in cab
Oil Pressure
The gauge registers in the operating range. 20 PSI
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
The ambient temperature is too cold to check.
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Steering Clutches (Crane)
Steering Brakes
Service Brakes
Clutch
Engages
Drive Chains/Sprockets
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
18 ft 6 in overall length, 2 Sections, 40 ft Length, 40 ft base section
JIB Length
21 ft 11 in overall length, ( 1 ) 30 ft Center boom sections
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Hook Rollers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Grouser Height
25 mm
Left Track Links
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Grouser Height
24 mm
Right Track Links
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Jib
Main Load Block
Overhaul Ball
None Supplied
Fairlead
Third Drum
Disconnected
Counterweights
